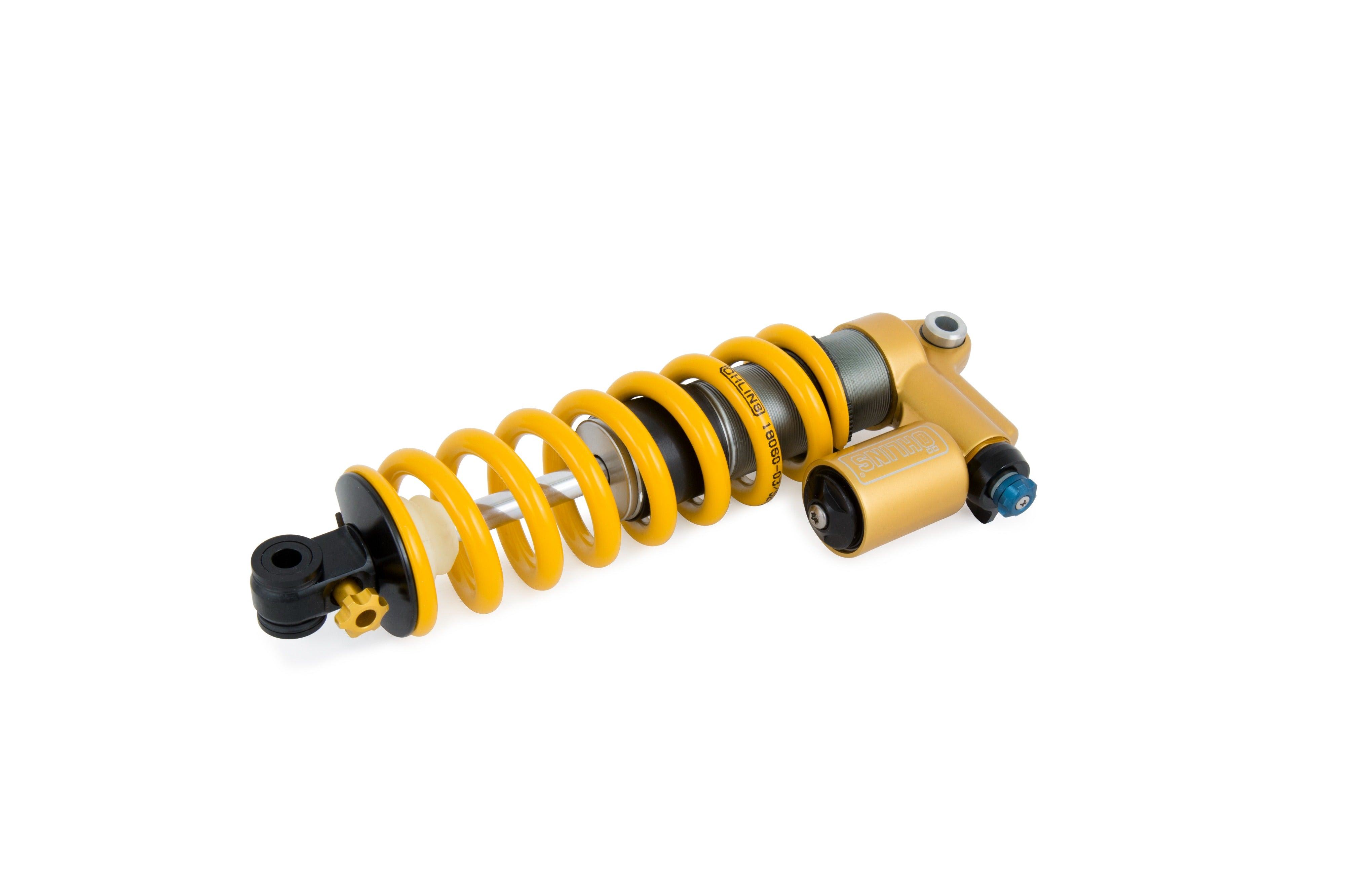

TTX 22 Universal Piggyback TB 1696, 200x57 (7.87x2.25") | Damper

The TTX22 is designed to take on the toughest downhill trails while providing pedaling efficiency on flats and uphill sections. The twin-tube design (TTX), together with the expansion tank, allows perfect control of the pressure conditions in the damper. This ensures consistent damper performance on all surfaces as well as a sensitive response and thus unimaginable control over the bike.

The TTX22 offers separate adjustment for rebound and compression damping in low and high speed. Optional ball joints with a width of up to 22 reduce friction under lateral loads for sensitive response on small bumps.

Technical specifications:

Twin Tube Technology (TTX)
Weight between 425 and 460 g (without spring)
Length 200 (7.87 inches)
Travel 57 (2.25 inches)
Aluminum, hard anodized
2 year guarantee
Can be completely dismantled for maintenance and repairs

Setting options:

3-way adjustable high-speed compression damping
16-way adjustable low-speed compression damping
7-way adjustable rebound damping

Feathers:

Series 18075-(06-17) weight-optimized
Increments of 4 N/ (23 lbs/in)
Powder coated
650 - 850g
Item is delivered without spring

Delivery scope:

1x shock absorber TTX22
User Guide
