Amflow PL

The Avinox M1 drive weighs just 2.52 kg, making it lighter than many of its competitors. Despite its compact size, it delivers impressive performance.

The motor offers a maximum torque of 120 Nm and a peak power of 1,000 watts in boost mode. In normal support mode, it delivers 105 Nm and 850 watts , making even the steepest climbs easy to handle.

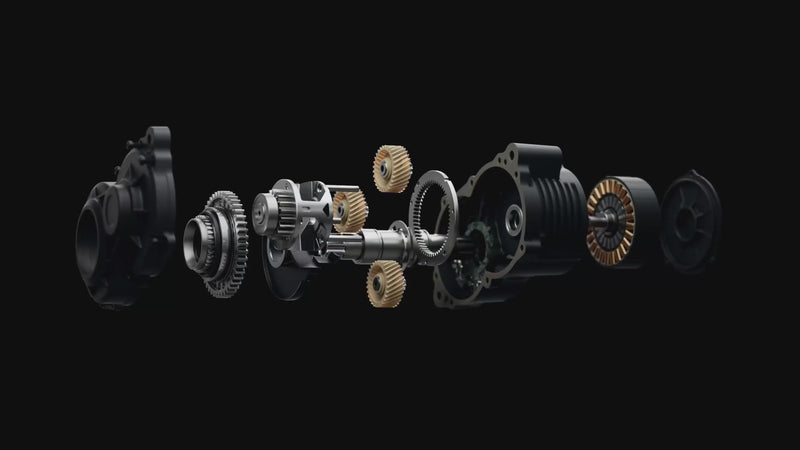

Inside the motor is a two-stage planetary gearbox with a gear ratio of 40:1. This design allows for high torque in a compact format.

The Avinox motor is powered by 600 Wh or 800 Wh batteries, which offer high energy density. With the High Performance Charger, the 800 Wh battery can be fully charged in approximately 3 hours.

A speed sensor with 42 magnets provides precise and responsive support that adapts seamlessly to the user's riding style.

A 2-inch OLED touchscreen display integrated into the top tube allows for easy control and adjustment of riding modes. Additionally, an accompanying app offers numerous features such as GPS tracking, theft protection, and individual adjustment of assistance levels.

The display allows you to connect to the Avinox app on your smartphone. This app allows you to customize various e-bike parameters, including power, torque, and cadence, to tailor the riding experience to your personal preferences. The app also offers features such as GPS tracking, anti-theft protection with an alarm function , and push notifications in case of unauthorized movement of the bike.

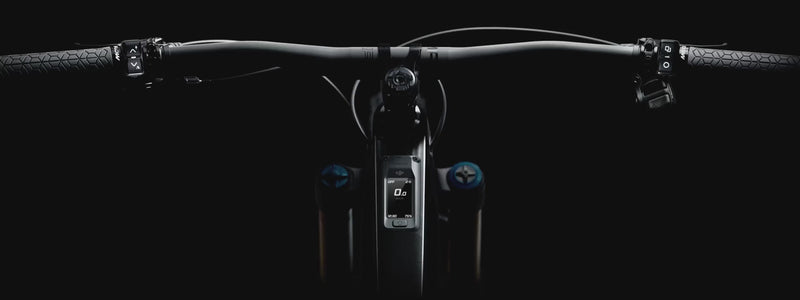

For convenient operation while riding, wireless controllers are mounted on both sides of the handlebars. These allow you to change support modes and control display content without having to take your hands off the handlebars.

Left controller : Change the support modes and activate the walk and boost mode.

Right controller : Scroll through the display without having to take your hands off the handlebars.

Eco : Energy-saving support for maximum range.

Trail : Balanced support for versatile terrain.

Turbo : Maximum support for demanding routes and steep climbs.

Auto : Intelligent mode that adapts assistance in real time to driving conditions and style.

Boost : Short-term power increase to 120 Nm torque and 1,000 watts peak power for particularly challenging passages

64.5° – Provides stability at high speeds and in challenging terrain.

77° – Supports efficient power transfer, especially on steep climbs.

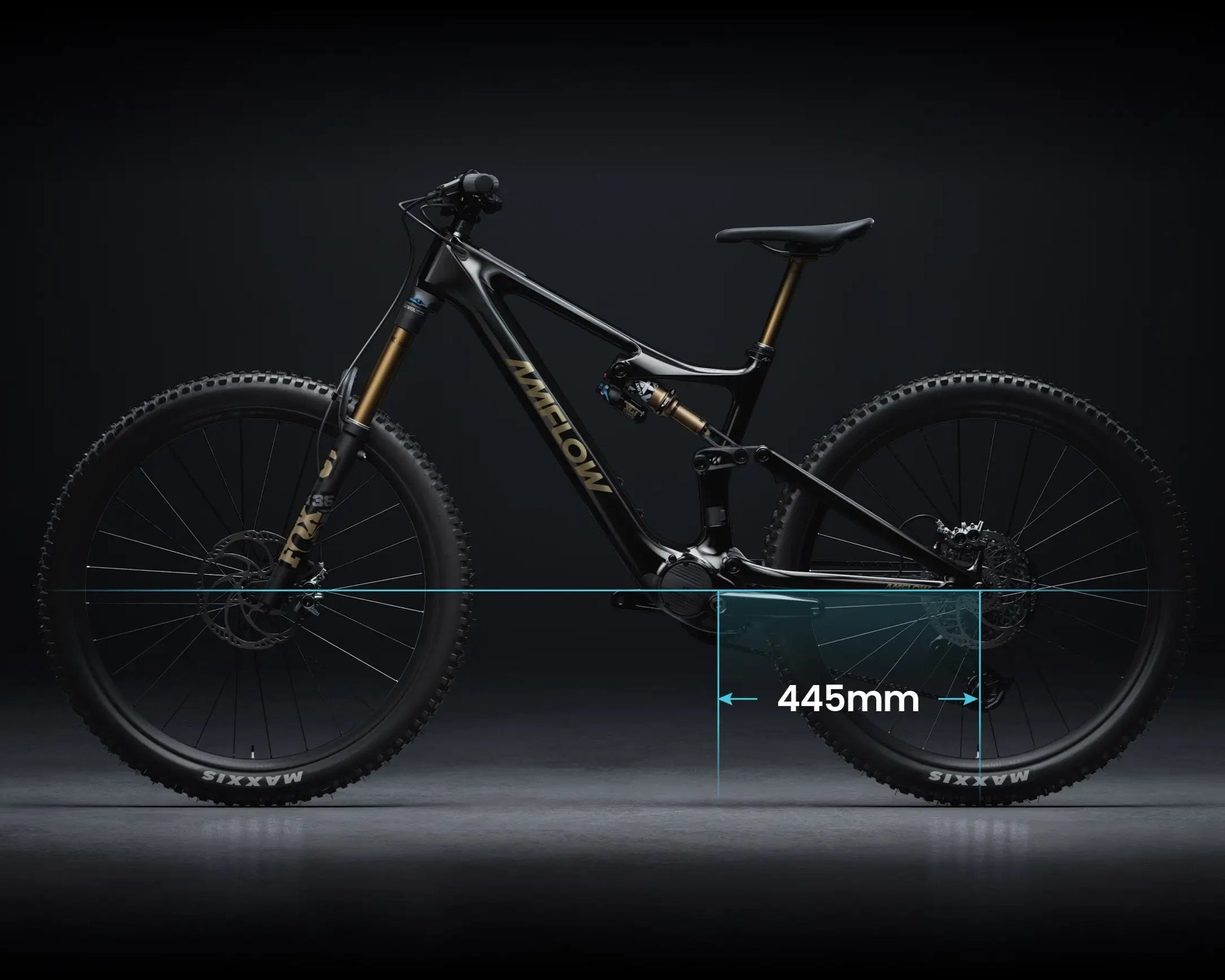

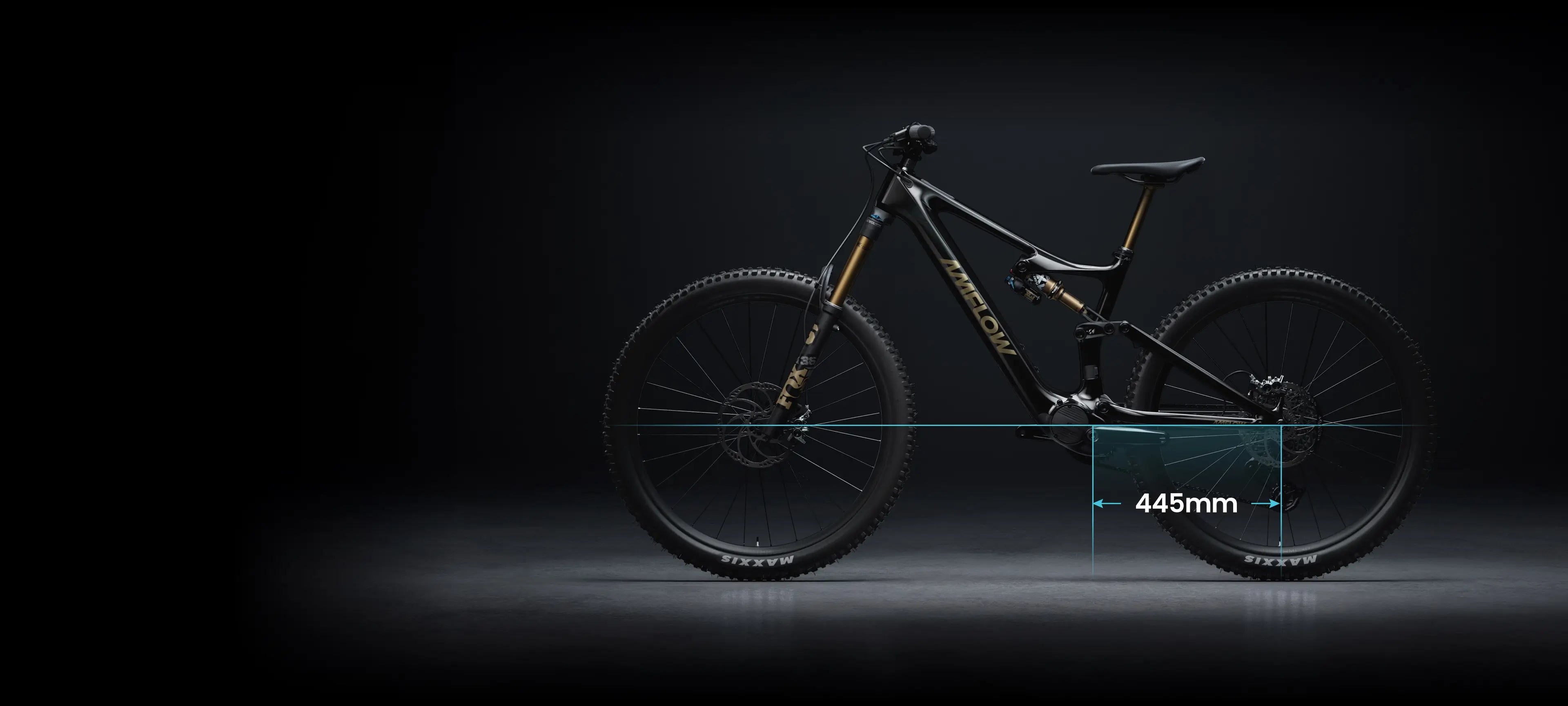

445 mm – Offers a balance between maneuverability and directional stability.

345.5 mm – Contributes to a low center of gravity, which increases driving stability.

Amflow PL Carbon: SRAM GX Eagle 12-speed drivetrain

Amflow PL Carbon Pro: SRAM X0 Eagle Transmission

Both ensure precise and reliable gear changes

Compared to the GX Eagle, the SRAM X0 Eagle transmission offers more precise shifting performance, greater durability thanks to more robust materials such as aluminum and steel, and wireless AXS technology for seamless, electronic shifting.

Amflow PL Carbon: Magura MT5

Amflow PL Carbon Pro: Magura MT7

Both the MT5 and MT7 feature powerful 4-piston brake systems. Both feature 203 mm brake discs.

Compared to the MT5 , the Magura MT7 offers more precise modulation, higher braking power thanks to optimized piston technology and a lighter Carbotecture SL construction, making it particularly suitable for aggressive trail and enduro riding.

Amflow PL Carbon: Amflow HMC-30 aluminum rims

Amflow PL Carbon Pro: Amflow HMC-30 carbon rims

Carbon wheels are lighter, stiffer and offer better vibration damping than aluminum wheels , resulting in more efficient power transfer, more precise handling and greater driving dynamics.

Amflow PL Carbon: Amflow Enduro Aluminum

Amflow PL Carbon Pro:Amflow Enduro Carbon

Carbon handlebars are lighter, absorb vibrations better and offer greater stiffness while providing more flex in the right places, which improves riding comfort and control compared to aluminum handlebars .

The bike is aimed at ambitious trail and enduro riders looking for a lightweight, powerful, and technologically advanced e-MTB. Its versatile geometry makes it ideal for those who enjoy both technical trails and fast descents.

If you don't want to compromise on the motor and are looking for maximum power with low weight - the Amflow PL is also the right choice for you.

Amflow PL Carbon

The perfect choice for riders looking for a state-of-the-art e-MTB with top-notch features at a fair price.

Amflow PL Carbon Pro

For demanding bikers who don't want to compromise – with carbon wheels, a more sophisticated FOX Factory suspension and the SRAM X0 Eagle transmission for maximum performance.

In conclusion, we can only say: Maximum power, minimal limits! Anyone looking for a lightweight, powerful, and smartly connected e-MTB that can go up and down anywhere will definitely get their money's worth with the Amflow PL .

The DJI motor will revolutionize the world of e-bikes and we will see it more often in the future.

If you want to find out more about the Amflow brand, just click here .
